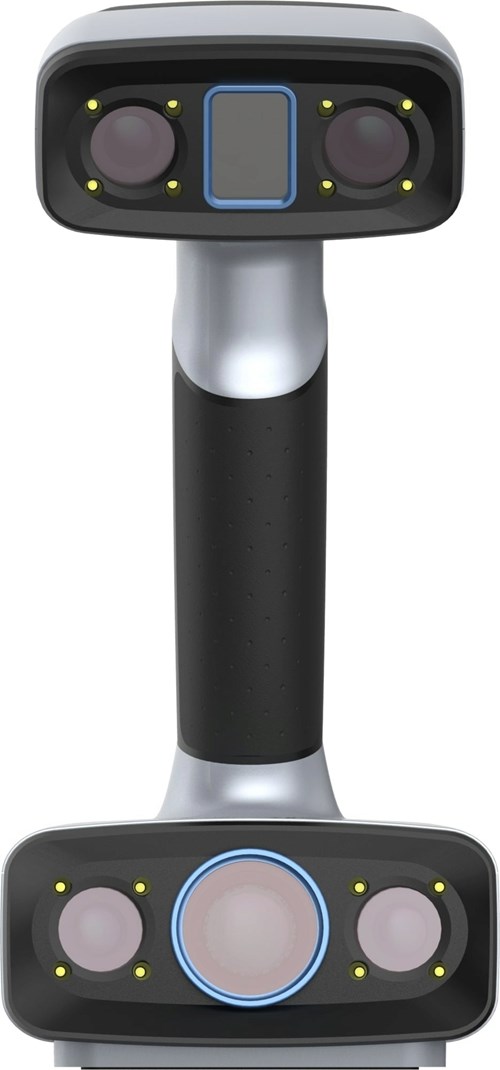

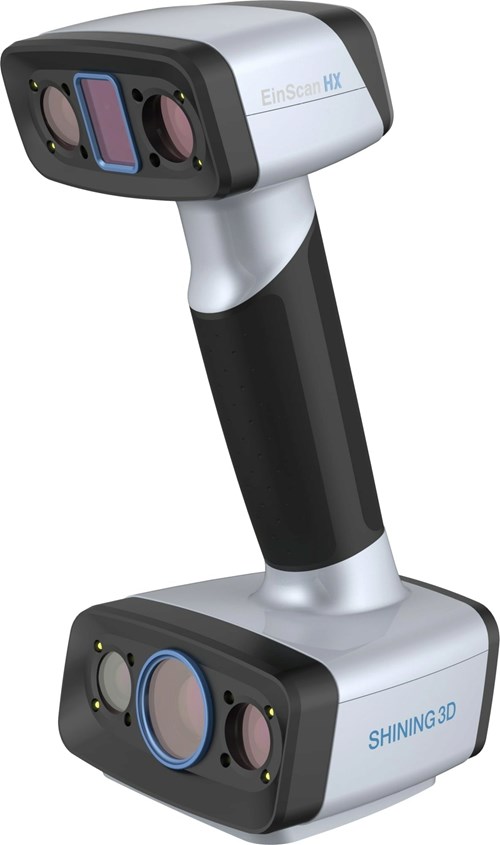

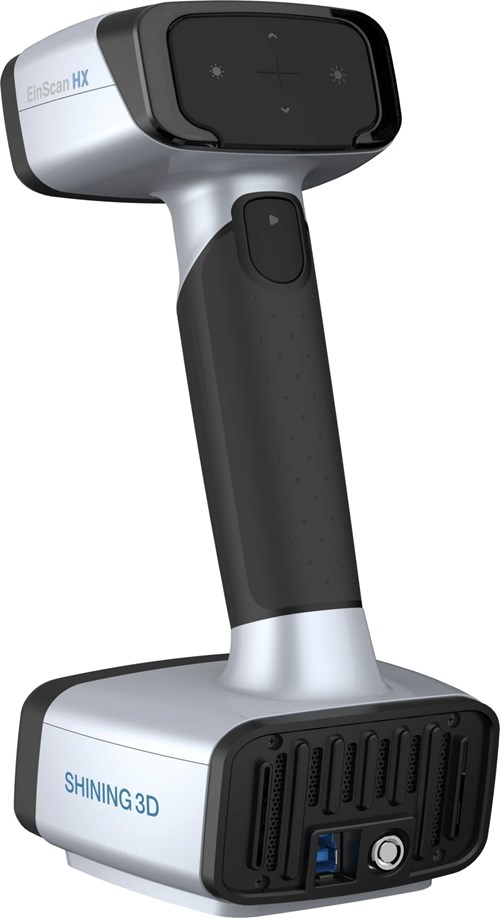

    Shining 3D EinScan HX Hybrid blue laser & LED handheld 3D scanner

    SKU: 6970163080604

    Based on years of experience in 3D measurement and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into the EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes and meet the diverse needs of users. High efficiency and reliable results offer the EinScan HX more application possibilities.

    Hybrid Blue Laser & LED

    The innovative integration with two blue LED lights and a blue laser improves the adaptability of the scan materials with fewer restrictions for a wider range of applications. 3D scanning with LED light enables fast 3D scanning. Laser scanning, which is less sensitive to ambient light, has better performance for reflective and dark colour surfaces.

    High efficiency

    The processing speed of the EinScan-HX in rapid scan mode is up to 1,200,000 points per second, and several blue laser lines in laser scan mode enable the scanning of most objects in a few minutes for reverse engineering, CAD / CAM, 3D printing etc.

    Reliable results

    The high resolution and accuracy meet the requirements of most industrial reverse engineering applications. Minimum point spacing of 0.05 mm; Accuracy up to 0.04 mm in laser mode.

    Portable and easy to use

    EinScan-HX is plug-and-play with user-friendly software that is easy to use whether you are new to 3D scanning or have professional experience. The portability and flexibility of the EinScan-HX has been upgraded with a more ergonomic design for a more efficient and comfortable scanning experience.

    Full colour

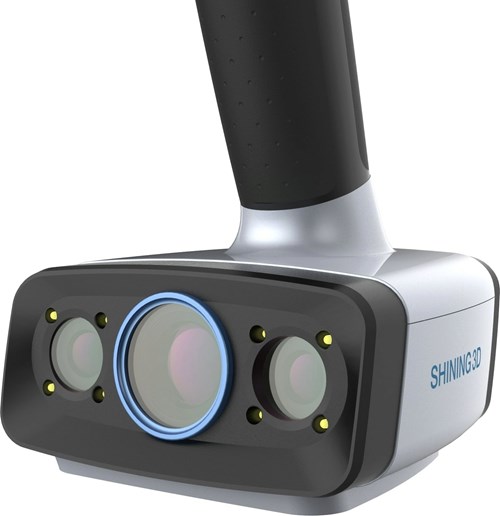

    With the built-in colour camera, it supports the capture of full textures and tracking by texture.

    Areas of application:

    • Automobile
    • Shipbuilding
    • Machine manufacturing
    • Education and Research

    Model

    EinScan-HX

    Scan mode

    Rapid scan

    Laser scan

    Scan accuracy

    Up to 0.05mm

    Up to 0.04 mm

    Volumetric accuracy

    0.05 + 0.1 mm / s

    0.04 + 0.06 mm / m

    Scan speed

    1,200,000 points / s 20 FPS

    480,000 points / s 55 FPS

    Align modes

    Feature, marker, texture, hybrid alignment

    Markers Alignment

    Camera frame rate

    55 FPS

    55 FPS

    Working distance

    470 mm

    470 mm

    Depth of Field

    200 - 700 mm

    350 - 610 mm

    Maximum FOV

    420 x 440 mm

    380 x 400 mm

    Point distance

    0.25-3 mm

    0.05 - 3 mm

    Light Source

    Blue LED

    7 blue laser crosses

    Safety

    Eye-safe

    Class I (eye-safe)

    Built-in colour camera

    Yes

    Texture scanning

    Yes

    No

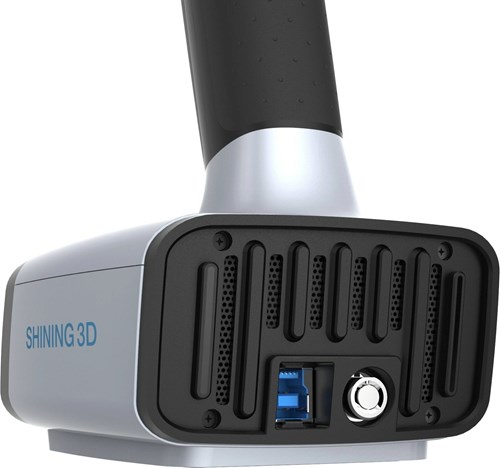

    Connection standard

    USB 3.0

    Output format

    OBJ; STL; ASC; PLY; P3; 3MF

    Dimensions

    108 x 110 x 237 mm

    Weight

    710 g

    Certification

    CE, FCC, ROHS, WEEE, KC

    Recommend Configuration

    OS: Win10, 64 bit; Graphics card: NVIDIA GTX1080 and higher; Video memory> 4GB; Processor: I7-8700; Memory:> 32GB
    £9,258.34

    Fixed Rate Payments With Tax Relief

    Lease Term 5 Years
    Weekly Payment £48.07
    First Payment £624.94
    57 Monthly Payments £208.31
    Total Cost £12,498.76
    Tax Relief @ 19% -£2,374.76
    Nett Cost Of Finance £10,123.99

    Call Us To Get Started - 0121 747 2499
