Raise3D E2 3D Printer 330x240x240
SKU: 1101000005
RAISE3D E2 3D PRINTER (1101000005)

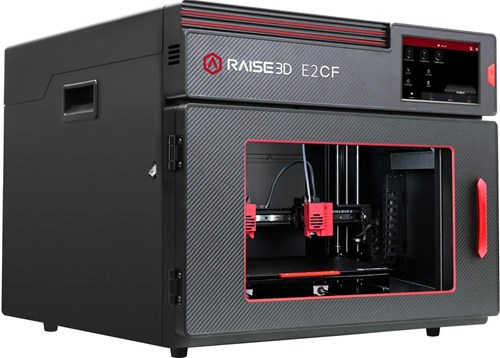

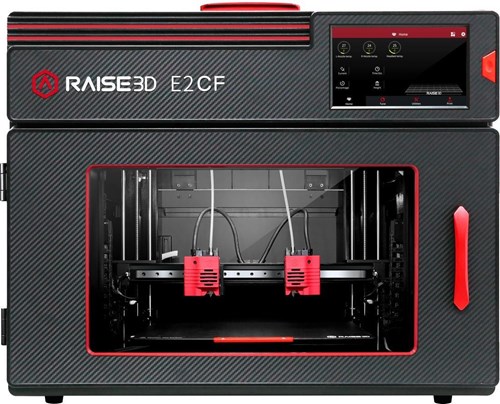

Pioneering flexible printing. The Raise3D E2 3D Printer (1101000005) is an easy-to-use desktop 3D printer, designed for precise printing results and operation as your go-to manufacturing resource. An assortment of configurations and astute features allows the E2 to scale production to meet the individual needs of users, without compromising printing accuracy at any point during the manufacturing process.
Independent dual extruders enable compatibility with a range of filament types and colours, while also supporting more versatile printing projects. Individual printing configurations like Mirror and Duplications Modes add further flexibility to your processes, with fine-tuned settings applied to help you create more unique results by asking your hardware to accomplish specific tasks.
- Build Volume: 330x240x240mm / 295x240x240mm
- Software: ideaMaker
- Filament Size: 1.75mm | Layer Thickness: 0.1-0.25mm | Nozzle Diameter: 0.4mm
- Highly durable nozzels
- Dual Direct Drive Extrusion System
- 1101000011
Auto Bed Leveling
Confirms that the printing platform is level whenever preparing to print. ABL maintains the distance between the print nozzles and bed, creating a uniform build area.
Improves bed adhesion and print quality by allowing the extruder to adjust to even minor surface contour changes.
Industry First Video-Assisted Offset Calibration System
Spend less time calibrating and more time printing.
Large Build Volume
Up to
13×9.4×9.4 inch | 330×240×240 mm
- Large build volume for bigger prints
- More options for designs
Flexible Build Plate
Easily remove prints from the flexible build plate while minimizing potential print damage to quickly return to printing.
Seamless Workflow, Ultimate Connectivity
NXP ARM Cortex-A9 Quad 1GHz
Compatible with a Variety of Filaments up to 300℃
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill
Intuitive User Experience
Visual Interface / Rapid Reviewing / Visual Print Progress / Full Adjustment Control
Never Lose a Print: Power Loss Recovery
No longer will sudden lapses in power ruin a print. Power loss recovery allows users to print worry-free.
- Automatically stores task progress prior to power failure.
- Seamlessly resumes the most recent task after power is restored
Never Lose a Print: Filament Run-out Sensors
Dependable and accurate optical run-out sensors automatically pause the print when the printer is out of filament.
- When filament runs out, a red light flashes and the print is paused. Then, users simply add filament and press resume.
- All types of filaments can be detected, regardless of color, material, or hardness.
HEPA Air Filtration
Environmentally friendly.
Automatically stores task progress prior to power failure.
Designed to silently remove nano-particles.
Technical specifications
| Print Technology | FFF |
|---|---|
| Build Volume (W×D×H) | Single Extrusion Print: 13×9.4×9.4 inch / 330×240×240 mm Dual Extrusion Print: 11.6×9.4×9.4 inch / 295×240×240 mm |
| Machine Size (W×D×H) | 23.9×23.5×18.3 inch / 607×596×465 mm |
| Print Head System | Independent Dual Extruders |
| Filament Diameter | 1.75mm |
| XYZ Step Size | 0.78125, 0.78125, 0.078125 micron |
| Print Head Travel Speed | 30-150 mm/s |
| Build Plate | Flexible Steel Plate with Buildtak |
| Max Build Plate Temperature | 110 ℃ |
| Heated Bed Material | Silicone |
| Build Plate Leveling | Mesh-leveling with Flatness Detection |
| Supported Materials | PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill |
| Layer Height | 0.02 – 0.25 mm |
| Nozzle Diameter | 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available) |
| Hot End | V3P (V3 hotend with PTFE version) |
| Max Nozzle Temperature | 300 ºC |
| Connectivity | Wi-Fi, LAN, USB port, Live camera |
| Noise Emission (Acoustic) | ＜50 dB(A) when building |
| Operating Ambient Temperature | 15-30 ºC, 10-90% RH non-condensing |
| Storage Temperature | -25 to 55℃, 10-90% RH non-condensing |
| Technical Certifications | CB, CE, FCC, RoHS, RCM |
| Filter | HEPA filter with activated charcoal |
